Test with the demo application

Now that you've defined attributes and interventions, it's time to see them work in a real application. We've prepared a demo React application with Snowplow tracking that can integrate with your Signals instance to demonstrate real-time personalization.

The demo application features:

• Product catalog: products fetched from an external API
• Snowplow tracking: the JavaScript tracker with the ecommerce plugin
• Intervention display: the browser tracker plugin to receive and show intervention banners
• Logging: the app prints to the console when it tracks an event, or receives an intervention
• Reset functionality: ability to clear your user data and start fresh

Access the demo application

The demo application is deployed at:

https://snowplow-incubator.github.io/signals-interventions-demo/

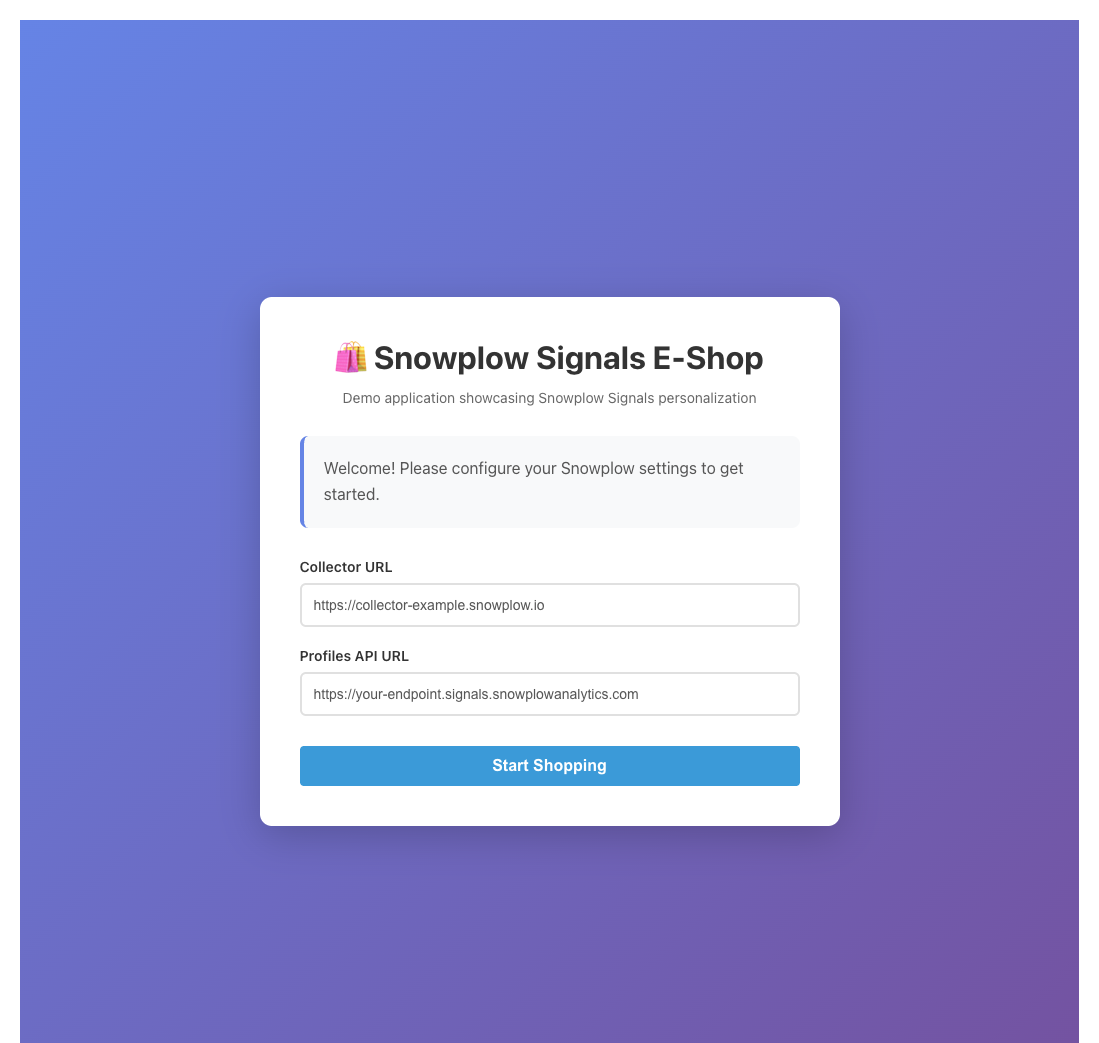

When you first open the app, you'll see a configuration screen.

Enter your credentials from the setup step.

Snowplow Console

• Collector URL: your Snowplow Collector endpoint for the pipeline you enabled Signals on (see the "Pipelines" section in Snowplow Console)
• Profiles API URL: your Signals API URL (from Snowplow Console > Signals > Overview)

Signals Sandbox

• Collector URL: your Snowplow Collector endpoint provided by Signals Sandbox
• Profiles API URL: your Signals Profiles API endpoint provided by Signals Sandbox

The app will store these values in your browser's local storage, so you won't need to enter them again during this session.

Click Start Shopping to proceed to the e-shop.

Test your interventions

Follow these steps to trigger each intervention.

Trigger the discount intervention

1. Browse the product catalog
2. Click on different products to view their details

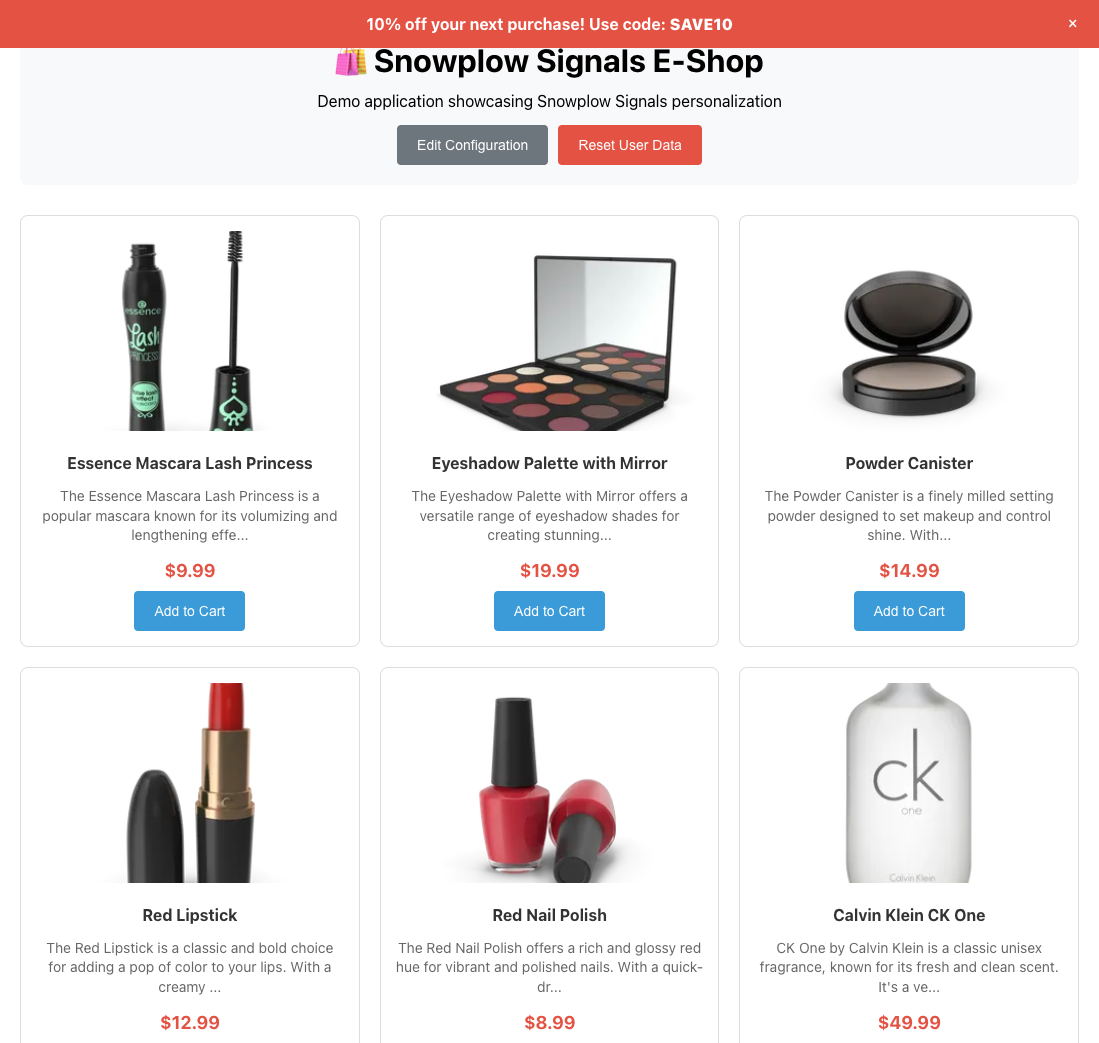

3. After viewing four products, you should see a banner appear at the top:
   • Message: "10% off your next purchase!"
   • Code: SAVE10

Trigger the cart abandonment intervention

1. Click Add to Cart on any product
2. After adding at least one item, you should see:
   • Message: "Don't forget your items in cart!"

Trigger the free shipping intervention

1. Add multiple items to your cart until the total value exceeds $100
2. You should see:
   • Message: "Free shipping on orders over $100!"
   • Code: FREE

Inspecting events, attributes and interventions using Snowplow Inspector

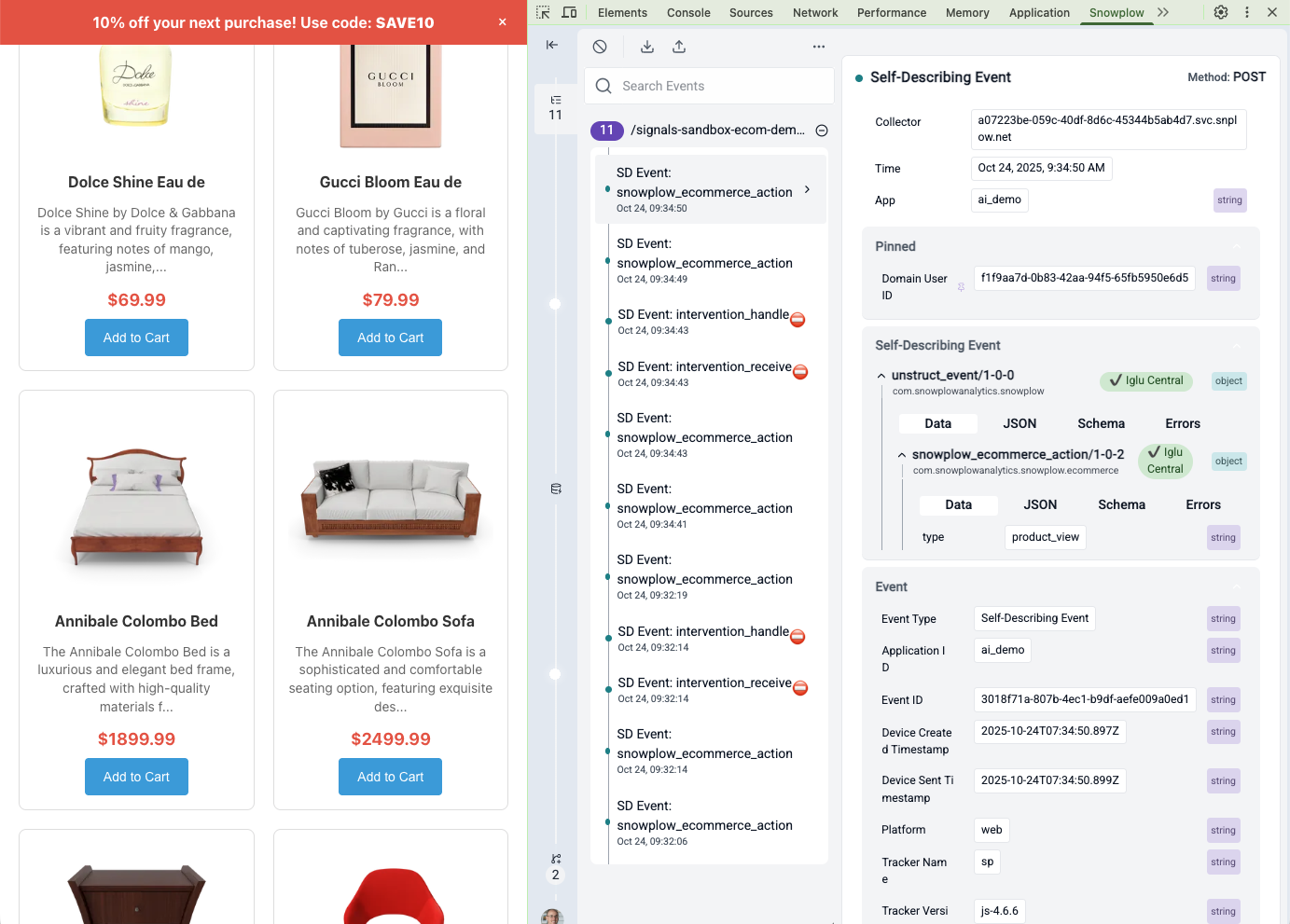

We highly recommend installing the Snowplow Inspector Chrome extension that lets you validate which Snowplow events are triggering on the website and also check the values of Signals attributes and interventions.

You can install the extension from the Chrome Web Store. Once you add the extension to Chrome, you can view it by opening Developer Tools (usually Ctrl+Shift+I or on Mac Cmd+Option+I), where it has its own tab named 'Snowplow'. Right away, you will see the tracked events as you open a product or add a product to cart.

Snowplow Console

To configure the extension to show Signals attributes and interventions:

1. In Chrome, navigate to the Extensions settings page
2. Click on "Details" for the Snowplow Inspector extension
3. Scroll down and click on "Extension options"
4. Click on "Add new organization" and enter your Organization ID and API key details.

Signals Sandbox

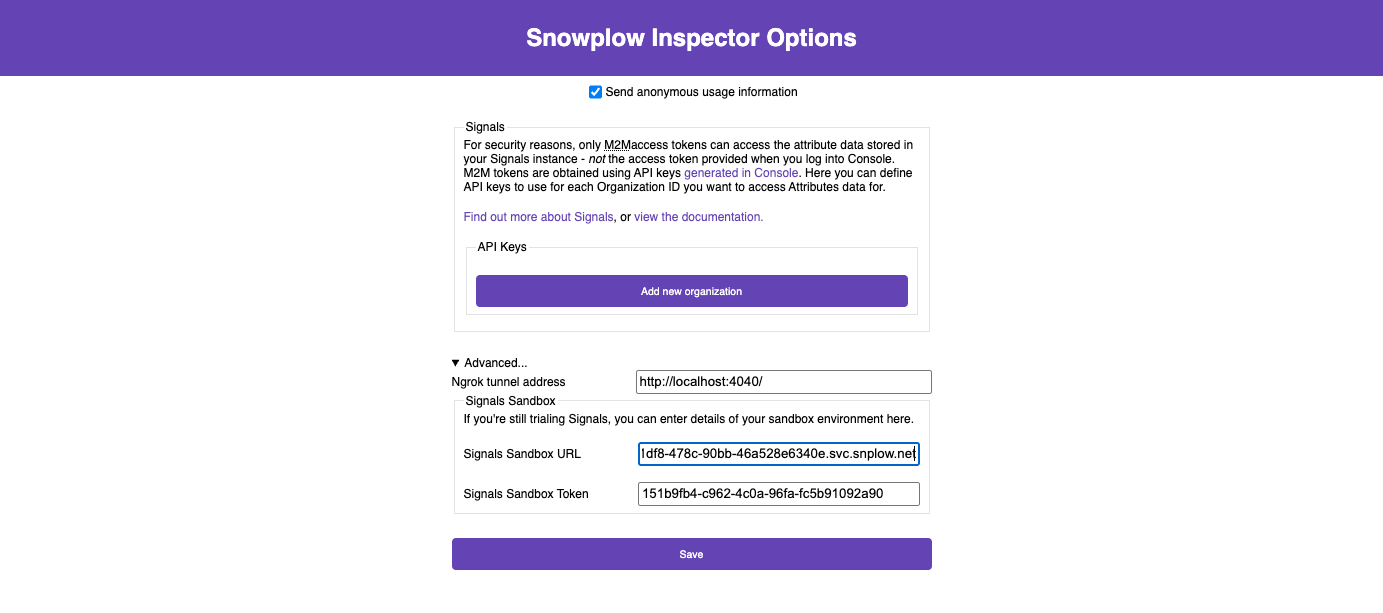

To configure the extension to show Signals attributes and interventions:

1. In Chrome, navigate to the Extensions settings page.
2. Click on "Details" for the Snowplow Inspector extension.
3. Scroll down and click on "Extension options".
4. Open "Advanced options" and enter your Signals Sandbox URL and token.

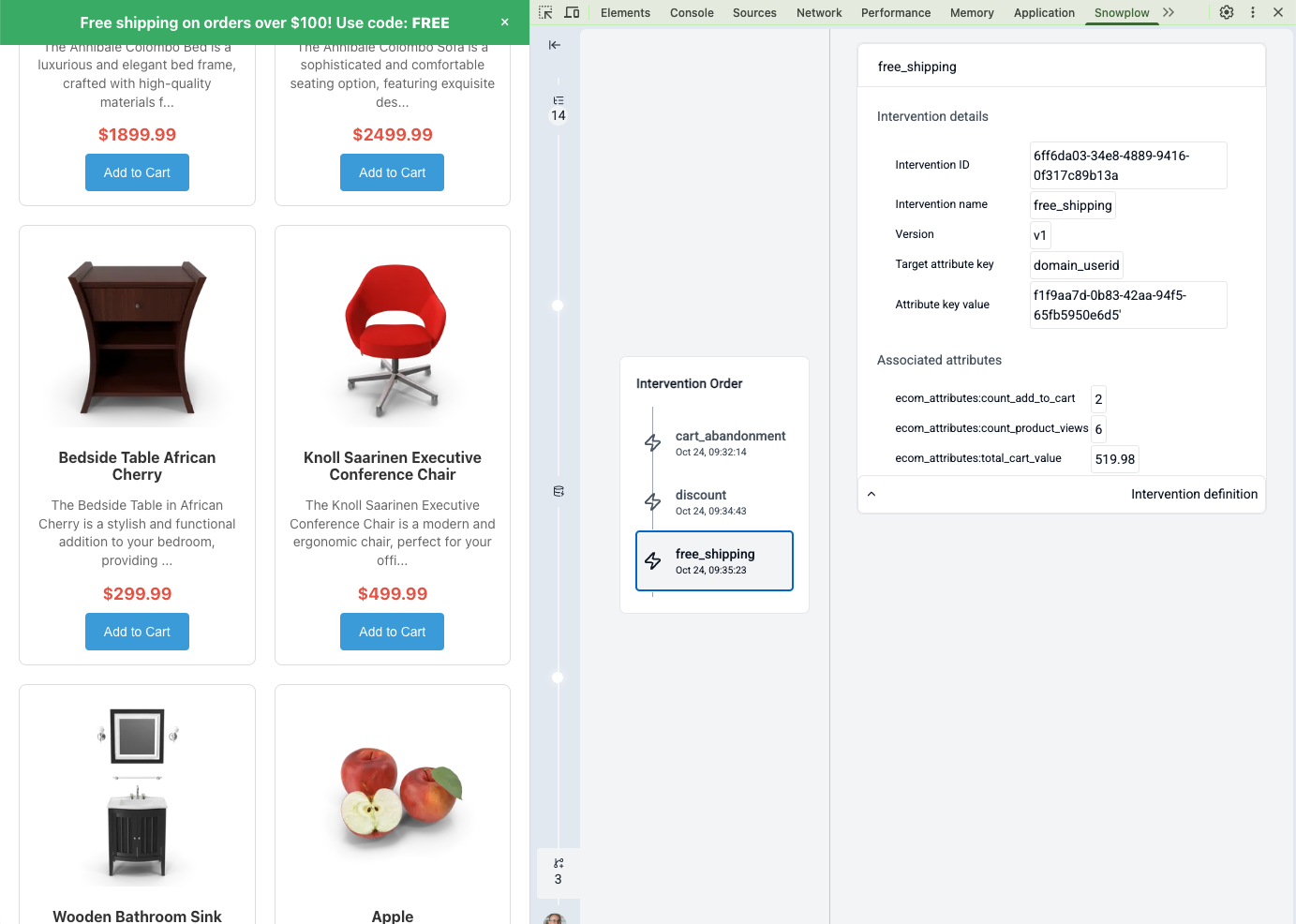

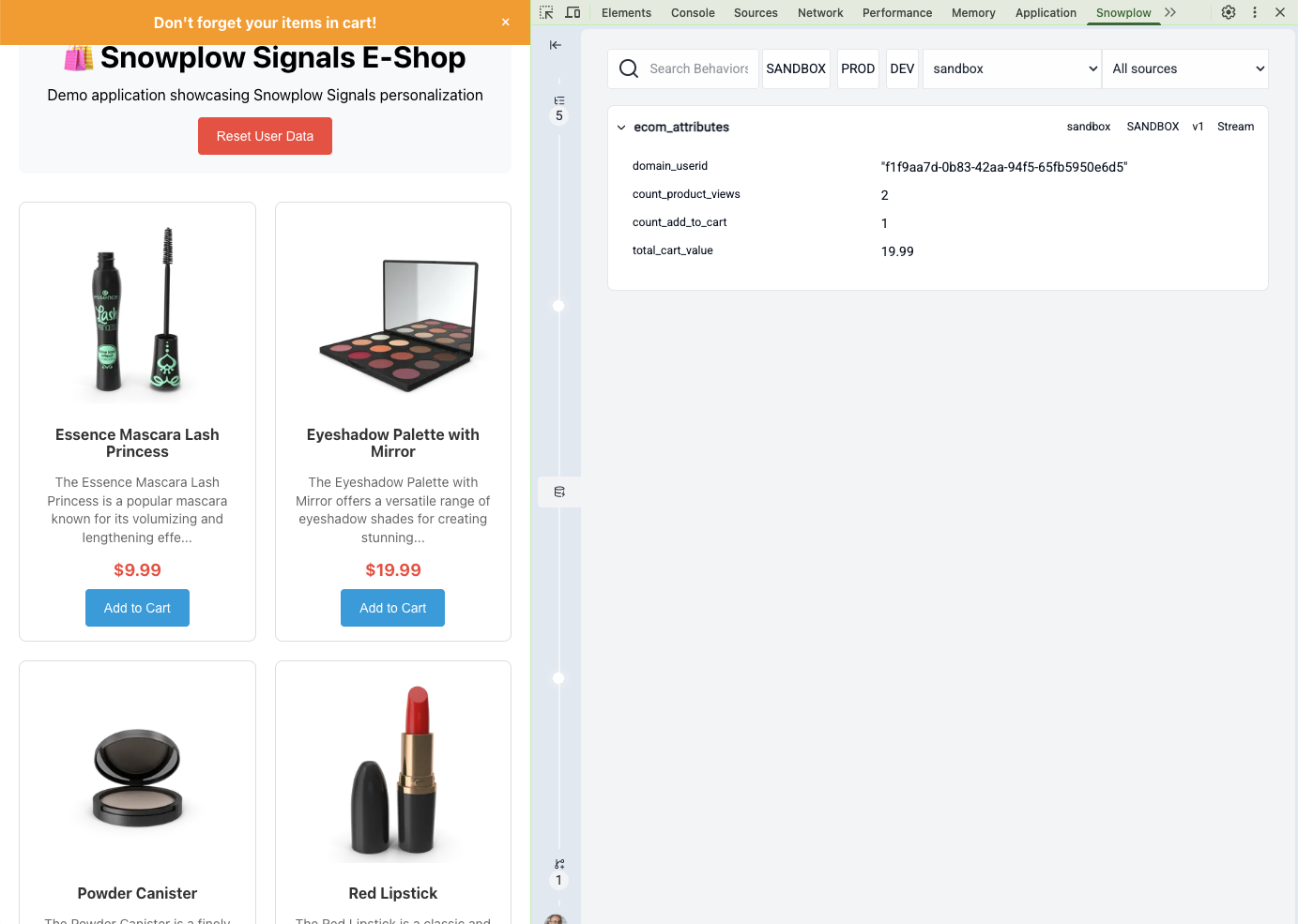

Now, in addition to seeing the Snowplow events tracked, you will be able to see the attributes and interventions calculated by Signals after switching the section on the left side of the extension.

Behind the scenes

Here's what happens when you interact with the demo app:

1. Event tracking: when you view a product or add to cart, the JavaScript tracker sends an ecommerce event to your Sandbox Collector
2. Attribute calculation: Signals processes the event and updates your user attributes in real time
3. Intervention evaluation: Signals checks if any intervention criteria are now met
4. Delivery: if an intervention triggers, Signals sends it to the browser via Server-Sent Events (SSE)
5. Display: the browser tracker plugin receives the intervention and your application displays the appropriate banner

Reset and experiment

You can click Reset User Data to clear your current user session and start testing again with a fresh profile. This generates a new domain_userid so you can re-trigger interventions.

The demo app is open source. You can explore the implementation in the GitHub repository:

• Tracker setup: see how the Snowplow tracker and Signals plugin are initialized in app/src/snowplow.ts
• Intervention handling: see how interventions are received and displayed in app/src/App.tsx
• Attribute definitions: review the Python notebook attributes_and_interventions.ipynb that you followed in this tutorial

You've successfully configured Signals to calculate real-time attributes and trigger personalized interventions based on user behavior.
