(Optional) Add your own calculation

This page describes how to add an additional feature to the product window. The process would be similar for other parts of the system, such as cart or purchase features.

The package com.evoura.snowplow.operator.product contains all classes related to the product features. The features used by the product windows are:

1. product_view_count
2. avg_viewed_price
3. return_view_count
4. price_range_viewed

These are generated as metrics for Flink by the ProductMetricsGeneratorRichFunction class. To generate an additional feature, you will need to update several other classes first.

In this example, you will track a new feature called most_viewed_brand, based on the user's most viewed product brand.

1. Add a field to ProductViewEvent

The web application tracks data on product brand—it's a field within the Snowplow ecommerce product_view event. A full example payload is available at .example/product_view.json, showing how the payload would look after processing through the Snowplow pipeline.

The brand field isn't currently present in the ProductViewEvent class.

Add brand as a String instance variable, after timestamp.

The updated class should look like this:

package com.evoura.snowplow.operator.product;

import com.evoura.operator.TimestampedEvent;

public class ProductViewEvent implements TimestampedEvent {
  public String eventId;
  public String userId;
  public String productId;
  public double productPrice;
  public long timestamp;
  public String brand;

  public ProductViewEvent() {}

  public ProductViewEvent(
      String eventId, String userId, String productId, double productPrice, long timestamp, String brand) {
    this.eventId = eventId;
    this.userId = userId;
    this.productId = productId;
    this.productPrice = productPrice;
    this.timestamp = timestamp;
    this.brand = brand;
  }

  @Override
  public long getTimestamp() {
    return timestamp;
  }

  @Override
  public String toString() {
    return "ProductViewEvent{"
        + "eventId='"
        + eventId
        + '\''
        + ", userId='"
        + userId
        + '\''
        + ", productId='"
        + productId
        + '\''
        + ", productPrice="
        + productPrice
        + ", brand='"
        + brand
        + '\''
        + '}';
  }
}

2. Deserialize the information in ProductViewEventMap

Because you updated the ProductViewEvent constructor, you need to update the ProductViewEventMap class as well. The class com.evoura.snowplow.operator.product.ProductViewEventMap is responsible for mapping a SnowplowEvent into a ProductViewEvent.

On line 32, provide the brand argument as productNode.path("brand").asText().

The updated method should look like this:

@Override
public ProductViewEvent map(SnowplowEvent snowplowEvent) throws Exception {
  String eventId = snowplowEvent.getEventId();
  String userId = snowplowEvent.getUserId();

  JsonNode payloadNode = MAPPER.readTree(snowplowEvent.payload);
  JsonNode productNode = payloadNode.path("product");

  String productId = productNode.path("id").asText("");
  JsonNode priceNode = productNode.path("price");
  double productPrice = priceNode.isNumber() ? priceNode.asDouble() : 0.0;

  return new ProductViewEvent(
      eventId, userId, productId, productPrice, snowplowEvent.getTimestamp(), productNode.path("brand").asText());
}

3. Calculate the most viewed brand

You can now calculate which brand is the most viewed by the user. All the current features are already segmented by user_id, so the segmentation won't be part of this.

Look at the class com.evoura.snowplow.operator.product.ProductFeatureRollingWindow. The method ProductFeatureRollingWindow.processWindow receives Iterable<ProductViewEvent> events as the first argument.

This variable will contain all the ProductViewEvents in the defined window. For products you can choose a 5 minute or a 1 hour window. Iterate through these items to calculate the most viewed brand by the user in this window.

It will look like something like this:

String mostViewedBrand =
        uniqueEvents.values().stream()
            .collect(
                Collectors.groupingBy(
                    productViewEvent -> productViewEvent.brand, Collectors.counting()))
            .entrySet()
            .stream()
            .max(Map.Entry.comparingByValue())
            .map(Map.Entry::getKey)
            .orElse("");

4. Forward the mostViewedBrand downstream

The value of the feature needs to be collected so that it's available for Flink.

The class com.evoura.snowplow.operator.product.ProductFeature is responsible for forwarding all calculations that happened in ProductFeatureRollingWindow.processWindow.

Start by updating the class to store the new mostViewedBrand feature as a String variable.

public class ProductFeature implements Serializable {
  public String userId;
  public int uniqueProductCount;
  public double averagePrice;
  public double minPrice;
  public double maxPrice;
  public String windowSize;
  public Map<String, Long> views;
  public String mostViewedBrand;

  public ProductFeature() {}

  public ProductFeature(
      String userId,
      int uniqueProductCount,
      double averagePrice,
      double minPrice,
      double maxPrice,
      String windowSize,
      Map<String, Long> views,
      String mostViewedBrand) {
    this.userId = userId;
    this.uniqueProductCount = uniqueProductCount;
    this.averagePrice = averagePrice;
    this.minPrice = minPrice;
    this.maxPrice = maxPrice;
    this.windowSize = windowSize;
    this.views = views;
    this.mostViewedBrand = mostViewedBrand;
  }

  @Override
  public String toString() {
    return String.format(
        "Window: %s, User: %s, Unique Products: %d, Avg Price: %.2f, Min Price: %.2f, Max Price: %.2f, Views: %s, Most Viewed Brand: %s",
        windowSize, userId, uniqueProductCount, averagePrice, minPrice, maxPrice, views, mostViewedBrand);
  }
  ...
}

This class contains a TypeInfoFactory class. A TypeInfoFactory is a way to tell Flink what's being forwarded to the next operator.

This is required because we decided to turn off Kryo deserialization on Flink. This trades some convenience for the long-term ability to perform rolling upgrades, rescale jobs, and keep historical state readable as your data model inevitably changes.

Kryo's "black-box" binary format doesn't carry any structural information, so even a small change to a field name, order, or data type breaks compatibility and can corrupt state when jobs are upgraded. Flink's own type serializers (POJO, Avro, Protobuf, etc.) embed explicit schema metadata and versioning hooks, allowing the runtime to evolve the schema safely and transparently migrate state across savepoints. We chose POJO for this project to avoid requiring any external schema registry.

Update the ProductFeature TypeInfoFactory to forward the mostViewedBrand feature.

The desired output will be:

public class ProductFeature implements Serializable {
  ...

  public static class InfoFactory extends TypeInfoFactory<ProductFeature> {

    public static TypeInformation<ProductFeature> typeInfo() {
      InfoFactory factory = new InfoFactory();
      return factory.createTypeInfo(null, null);
    }

    @Override
    public TypeInformation<ProductFeature> createTypeInfo(
        Type t, Map<String, TypeInformation<?>> genericParameters) {
      Map<String, TypeInformation<?>> fields = new HashMap<>();

      fields.put("userId", Types.STRING);
      fields.put("uniqueProductCount", Types.INT);
      fields.put("averagePrice", Types.DOUBLE);
      fields.put("minPrice", Types.DOUBLE);
      fields.put("maxPrice", Types.DOUBLE);
      fields.put("windowSize", Types.STRING);
      fields.put("views", Types.MAP(Types.STRING, Types.LONG));
      fields.put("mostViewedBrand", Types.STRING);

      return Types.POJO(ProductFeature.class, fields);
    }
  }
}

Next, go back to ProductFeatureRollingWindow.processWindow and pass mostViewedBrand on at line 75.

    out.collect(
        new ProductFeature(
            ctx.getCurrentKey(),
            uniqueViewsCount,
            avgUniquePrice,
            uniqueViewsCount == 0 ? 0.0 : priceStats.getMin(),
            uniqueViewsCount == 0 ? 0.0 : priceStats.getMax(),
            windowIdentifier,
            productViewCounts,
            mostViewedBrand));

5. Get the feature in Redis

The class com.evoura.snowplow.operator.product.ProductMetricsGeneratorRichFunction is responsible for converting the generated metrics into something the Redis operator understands. The method ProductMetricsGeneratorRichFunction.processElement has multiple feature collections.

Add your new mostViewedBrand feature after the existing blocks:

out.collect(
        new MetricValue(
            String.format(
                "user:%s:most_viewed_brand_%s", productFeature.userId, productFeature.windowSize),
            String.valueOf(productFeature.mostViewedBrand)));

6. Re-run the pipeline

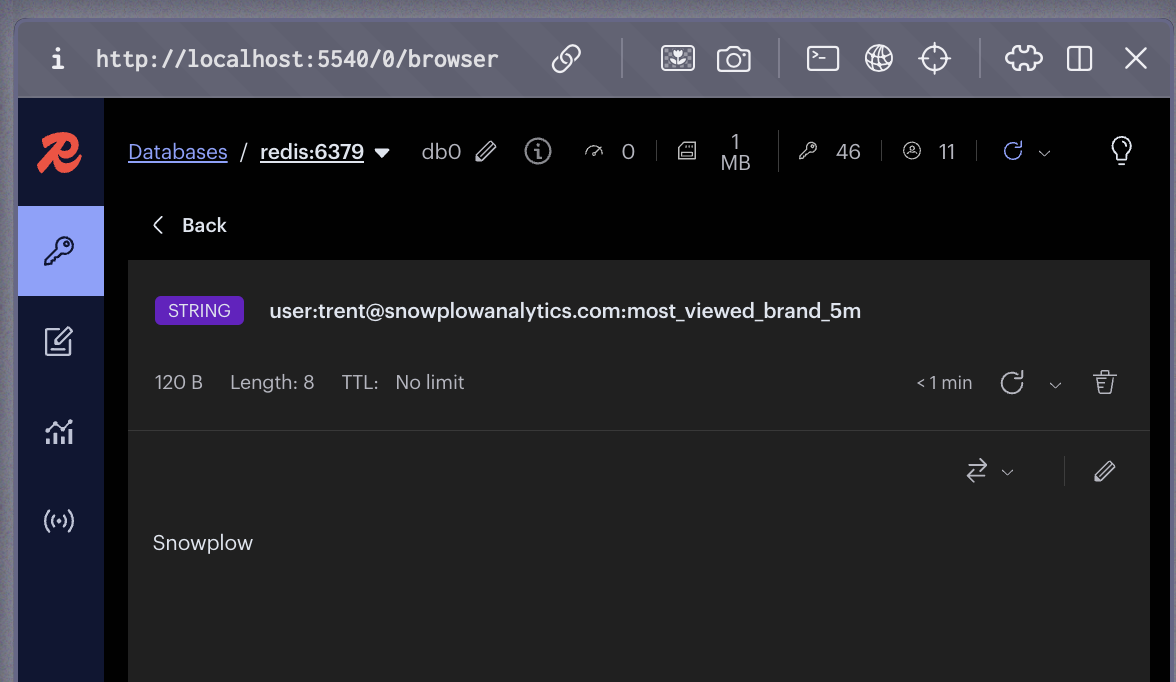

After these changes, re-run the script ./up.sh. It will rebuild the docker image and restart the containers. You should be able to see in Redis the most viewed brand by the user.
