Understanding entities

When an event occurs, it generally involves a number of entities, which provide additional information.

Terminology

In the past, what we now call “entities” was called “context”. We find the new term clearer, but you will still find context used in many of the existing APIs, database column names, and documentation, especially to refer to a set of multiple entities. Sometimes, we will also use the two terms interchangeably.

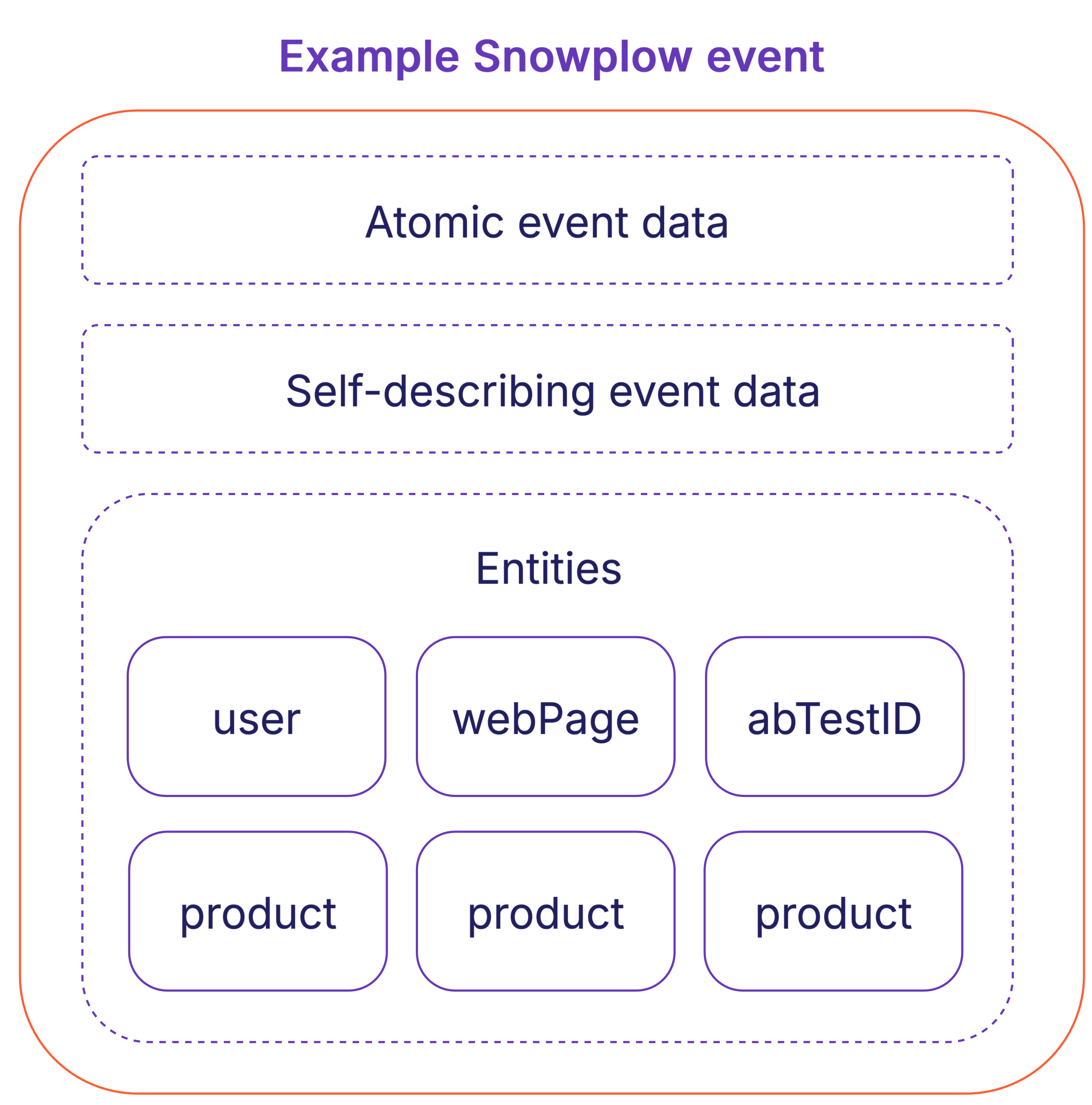

Let’s take the example of a “search” event. It may have the following entities associated with it:

1. A user entity, representing the user who performed the search
2. A web page entity — the page on which the event occurred
3. If the page is a part of an A/B test, an entity that specifies the variation of the page
4. An entity containing a set of products that were returned from the search

note

Each Snowplow event can have multiple entities attached to it. Any number of these entities can be of the same or different types.

What makes entities interesting is that they are common across multiple different event types. For example, the following events for a retailer will all involve a “product” entity:

• View product
• Select product
• Like product
• Add product to basket
• Purchase product
• Review product
• Recommend product

Our retailer might want to describe product using a number of fields including:

• SKU
• Name
• Unit price
• Category
• Tags

Rather than defining all the product-related fields for all the different product-related events, they would define a single product entity and attach it to any product-related event.

Under the hood

Entities are similar to self-describing events. As such, they can include arbitrarily complex data, as defined by the entity’s schema.

note

Because the entity references its schema (in a particular version!), it’s always clear to the downstream users and applications what each field in the entity means, even if your definition of the entity changes over time.

Each entity consists of two parts:

• A reference to a schema that describes the name, version and structure of the entity
• A set of key-value properties in JSON format — the data associated with the entity

This structure is an example of what we call self-describing JSON — a JSON object with a schema and a data field.

In the data warehouse, each type of entity gets its own column (or its own table, in the case of Redshift). There is no difference between how out-of-the-box and custom entities are stored. See the structure of Snowplow data for more information.

Out-of-the-box entities

Snowplow provides a number of entities out of the box.

Some of them are attached to the event by tracking SDKs. For example, with the JavaScript tracker, you can enable the collection of performance timing and other entities. The associated data will be added automatically to any Snowplow event fired on the page:

window.snowplow("newTracker", "sp", "{{COLLECTOR_URL}}", {
    appId: "cfe23a"
  },
  contexts: {
    webPage: true,
    performanceNavigationTiming: true,
    performanceTiming: true,
    gaCookies: true,
    geolocation: false
  }
);

Other out-of-the-box entities are added to the events by certain enrichments.

Custom entities

Custom entities are entities you define yourself.

tip

Defining your own custom entities is useful when you have similar bits of business-specific context you want to attach to multiple different events. For example, if many of your events refer to a product or a user, you can create your own product and user entities with the fields you want.

To track an event with a custom entity, e.g. product, you will first need to define its schema (see managing data structures). This schema might have fields such as productId, brand, etc.

Then you can use one of the tracking SDKs to add an array of entities to your event. For example, with the JavaScript tracker:

snowplow('trackPageView', {
  context: [{
    schema: 'iglu:com.example_company/product/jsonschema/1-2-1',
    data: {
      productId: 'ASO01043',
      brand: 'ACME'
    }
  }, {
    ...
  }]
});
