Define attributes

Attributes are defined as part of attribute groups. To create an attribute, you'll need to set:

• A name that describes the attribute
• Which event schema or event specification to calculate it from
• What property in the schema to consider for the calculation
• What kind of aggregation you want to calculate over time, e.g. mean or last

Attribute calculation starts when the definitions are published, and values are not backdated.

Configure the attribute

Every attribute needs events to calculate from, and an aggregation to calculate. Most aggregations also operate on a property of those events. The time period and criteria settings are optional refinements.

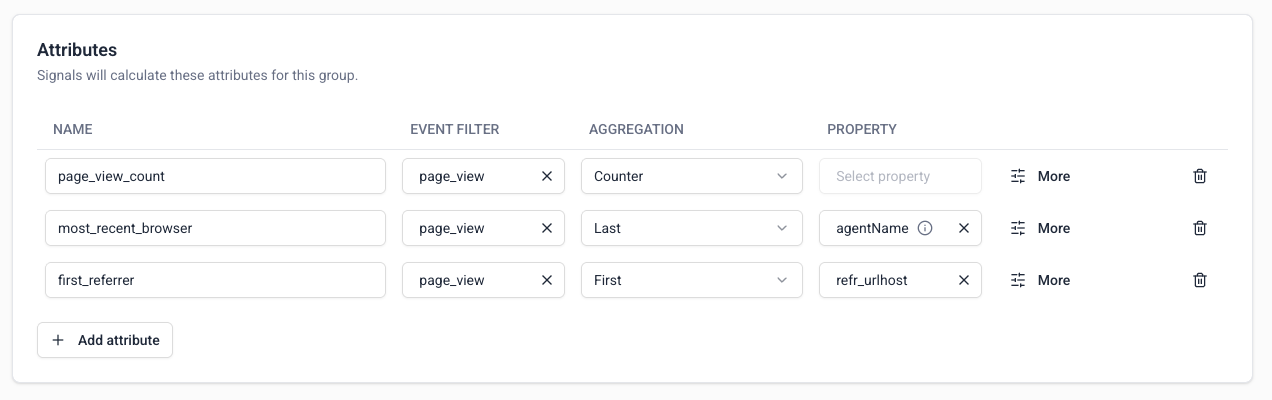

In Console, open your attribute group and use the attribute configuration interface to fill in the fields. The time period and criteria settings are within More options.

With the Python SDK, these settings are arguments to the Attribute class, listed in all attribute options.

Select events

Use the event filter to choose which event type to calculate the attribute from.

Console

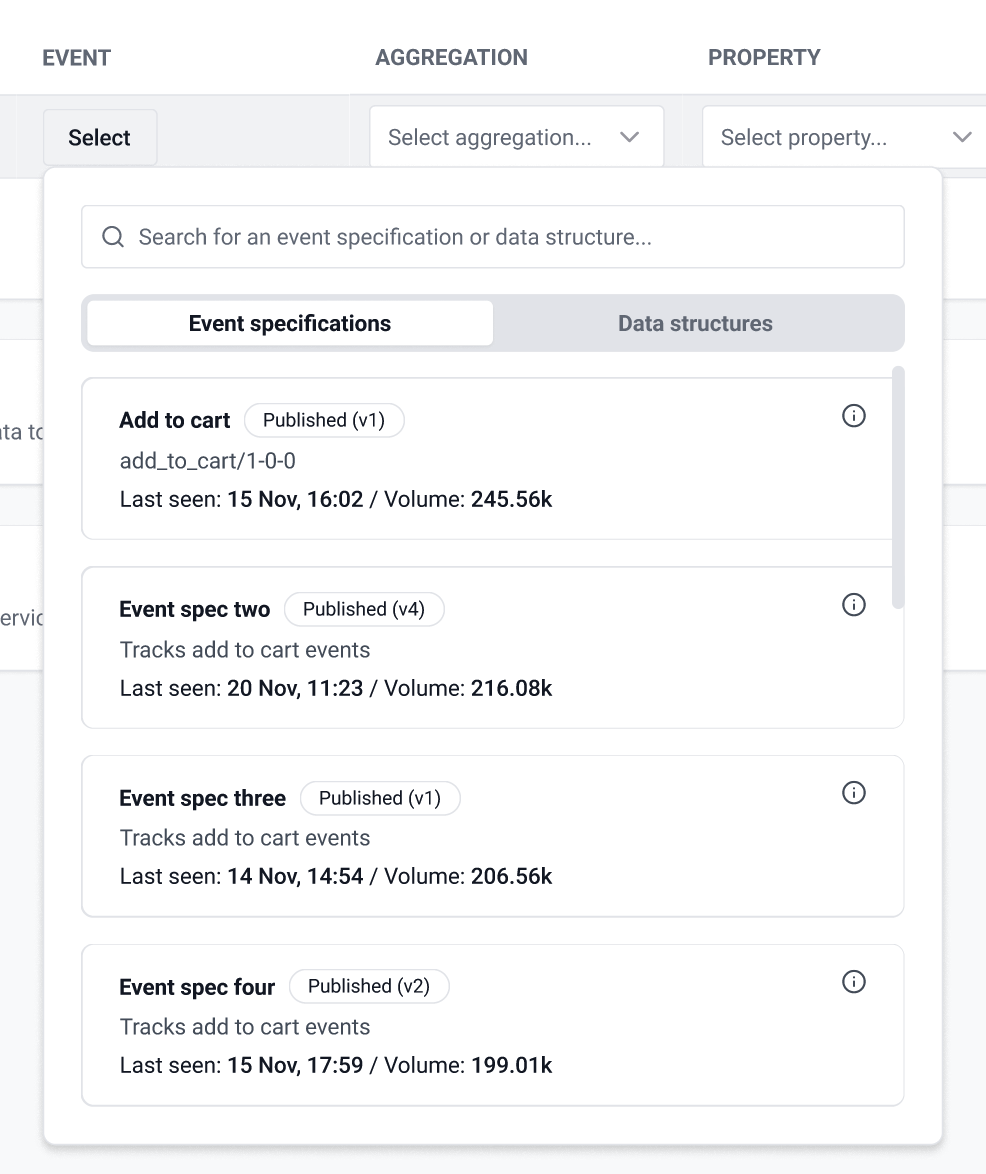

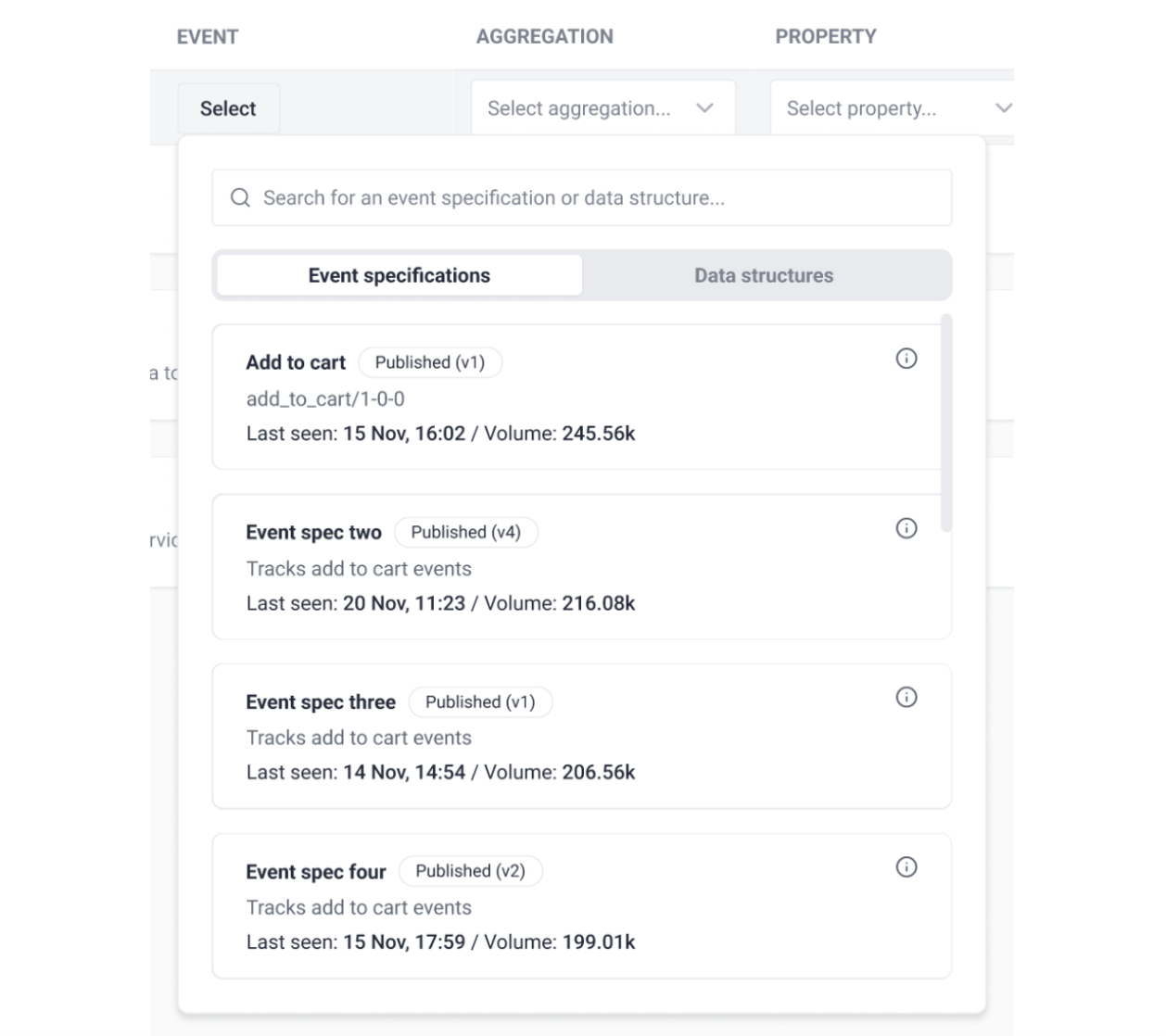

Click the dropdown to see the available events, listed by name and vendor:

• Event Specifications: select any event specification from an existing tracking plan.
• Snowplow events: select any built-in Snowplow or Iglu Central schema. For legacy reasons, to calculate an attribute from structured events find event (com.google.analytics.measurement-protocol).
• Custom events: select any schema or data structure available within your pipeline.

Searching for events

The search finds direct matches only, so use the exact name of the event, schema, or vendor.

Once you've selected an event and version, click Confirm to add the attribute to your attribute group.

Python SDK

The events list describes the types of events the attribute is calculated from, as references to Snowplow event schemas.

An Event accepts the following parameters:

Argument	Description	Type
name	event_name column in atomic.events table	string
vendor	event_vendor column in atomic.events table	string
version	event_version column in atomic.events table	string

All parameters are optional and work as wildcards. Some examples:

python

# A specific event version
Event(
    name="destination",
    vendor="com.snowplowanalytics.snowplow.media",
    version="2-0-2"
)

# All versions of an event
Event(
    name="destination",
    vendor="com.snowplowanalytics.snowplow.media",
)

# All events for a vendor
Event(vendor="com.snowplowanalytics.snowplow.media")

# Built-in Snowplow events
sp_page_view = Event(name="page_view", vendor="com.snowplowanalytics.snowplow", version="1-0-0")
sp_page_ping = Event(name="page_ping", vendor="com.snowplowanalytics.snowplow", version="1-0-0")
# Structured events
sp_structured = Event(name="event", vendor="com.google.analytics", version="1-0-0")

Choose an aggregation

Signals supports the following aggregation types:

Aggregation	Description	Required property type in schema
Counter	Count events	No property used for this aggregation
Sum	Sum of property values	Numeric
Min	Minimum property value	Numeric
Max	Maximum property value	Numeric
Mean	Average of property values	Numeric
First	First property value seen	String, Numeric, Boolean
Last	Last property value seen	String, Numeric, Boolean
Most Frequent	Most frequent property value seen	String, Numeric, Boolean
Least Frequent	Least frequent property value seen	String, Numeric, Boolean
Approx Count Distinct	Approximate distinct count (HyperLogLog)	String, Numeric, Boolean
Category Count	Dictionary of unique values and their counts	String, Numeric, Boolean
Unique List	List of unique property values	String, Numeric, Boolean

A property isn't used for counter aggregation. To only count events with a specific property value, use a criteria filter.

Console

Select the aggregation type from the dropdown in the attribute configuration interface.

Python SDK

Set the aggregation argument using the lowercase snake_case version of the aggregation name, e.g. "counter", "most_frequent", "approx_count_distinct".

Select a property

You can calculate attributes based on properties in any part of your events:

• Atomic properties: available for all events
• Event schema properties: properties within your chosen event
• Entity properties: properties from schemas tracked as entities with your chosen event

Console

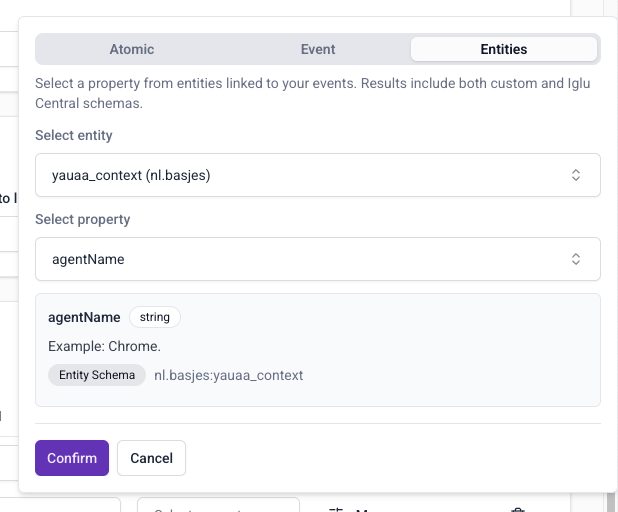

Click Confirm to specify the property for this attribute.

Python SDK

Use the property argument on Attribute with one of these helper classes:

• AtomicProperty — targets atomic properties in the event payload
• EventProperty — targets properties in the event data structure
• EntityProperty — targets properties in entity data structures

python

# Atomic property
AtomicProperty(name="app_id")

# Property in an event data structure
EventProperty(
    vendor="com.example",
    name="test_event",
    major_version=1,
    path="action"
)

# Property in an entity
EntityProperty(
    vendor="com.example",
    name="user_context",
    major_version=1,
    path="age"
)

Set a time period

Add an optional time period to aggregate over a rolling window. Signals won't include events older than the specified time period in the calculation.

Console

Find the time period option within More options. Click Done to save it.

Python SDK

Set period on your Attribute using a Python timedelta:

python

from datetime import timedelta

my_attribute = Attribute(
    ...,
    period=timedelta(minutes=10),
)

Filter with criteria

Use criteria to filter the events used to calculate an attribute. They allow you to be specific about which subsets of events should trigger attribute updates. For example, instead of counting all page views in a user's session, you may wish to calculate only views for the homepage, or a login page.

Console

Find the criteria option within More options.

Defining criteria has three steps:

1. Select which property to filter on, similarly to the property selection for the attribute
2. Choose which logical operator to use
3. Enter the value to filter on

If you enter multiple criteria, you will have the option to require all or any of them to be met for the attribute to update.

Click Done to save the criteria when you're finished.

Python SDK

The criteria argument takes a Criteria object, which contains Criterion conditions.

Argument	Description	Type
all	All conditions must be met	list of Criterion
any	At least one condition must be met	list of Criterion

Use Criterion operator methods to define filtering rules:

• .eq — equality (=)
• .neq — non-equality (!=)
• .gt — greater than
• .gte — greater than or equal to
• .lt — less than
• .lte — less than or equal to
• .like — pattern match (LIKE)
• .in_list — value in list (IN)

For example, to calculate an attribute for page views of either the FAQs or contact page:

python

from snowplow_signals import Criteria, Criterion, AtomicProperty

criteria = Criteria(
    any=[
        Criterion.like(AtomicProperty(name="page_url"), "%/faq%"),
        Criterion.like(AtomicProperty(name="page_url"), "%/contact-us%"),
    ]
)

All attribute options

The table below lists all available arguments for a Python SDK Attribute. The same options are available in the Console attribute configuration interface.

Argument	Description	Type	Required?
name	The name of the attribute	string	✅
description	The description of the attribute	string	❌
events	List of Snowplow Events to calculate the attribute from	list of Event	✅
aggregation	The calculation to perform	one of: counter, sum, min, max, mean, first, last, most_frequent, least_frequent, approx_count_distinct, category_count, unique_list	✅
type	The type of the aggregation result	one of: bytes, string, int32, int64, double, float, bool, dict, unix_timestamp, bytes_list, string_list, int32_list, int64_list, double_list, float_list, bool_list, unix_timestamp_list	✅
criteria	Filters to apply to events	Criteria	❌
property	The property of the event or entity to use in the aggregation	string	❌
period	The time window over which to calculate the aggregation	timedelta	❌
default_value	Default value if aggregation returns no results		❌

Examples

The following examples show complete attribute configurations, using the Python SDK.

Minimal example

This is the minimum configuration needed to create an attribute:

python

from snowplow_signals import Attribute, Event

my_attribute = Attribute(
    name="button_click_counter",
    type="int32",
    events=[
        Event(
            vendor="com.snowplowanalytics.snowplow",
            name="button_click",
            version="1-0-0",
        )
    ],
    aggregation="counter"
)

Once applied and active, this definition triggers every time Signals processes an event with the schema iglu:com.snowplowanalytics.snowplow/button_click/jsonschema/1-0-0. The stored attribute starts at 0 and increases by 1 with every button_click event.

Filtered counter with a time window

Count button_click events only where the button id is generate_emoji_btn, over a rolling 10-minute window.

python

from snowplow_signals import Attribute, Event, Criteria, Criterion, EventProperty
from datetime import timedelta

button_click_counter_attribute = Attribute(
    name="emoji_button_click_counter",
    description="The number of clicks for the 'generate emoji' button",
    type="int32",
    events=[
        Event(
            vendor="com.snowplowanalytics.snowplow",
            name="button_click",
            version="1-0-0",
        )
    ],
    aggregation="counter",
    criteria=Criteria(
        all=[
            Criterion.eq(
                EventProperty(
                    vendor="com.snowplowanalytics.snowplow",
                    name="button_click",
                    major_version=1,
                    path="id"
                ),
                "generate_emoji_btn"
            )
        ]
    ),
    period=timedelta(minutes=10),
    default_value=0
)

Last atomic property value

Track the most recent referrer source using the mkt_medium atomic property, calculated from either a page view or a custom event.

python

from snowplow_signals import Attribute, Event, AtomicProperty

referrer_source_attribute = Attribute(
    name="referrer_source",
    description="Referrer",
    type="string",
    events=[
        Event(name="page_view", vendor="com.snowplowanalytics.snowplow", version="1-0-0"),
        Event(name="login_landing", vendor="com.business.example", version="1-0-0"),
    ],
    aggregation="last",
    property=AtomicProperty(name="mkt_medium"),
)

Sum of an entity property

Sum the price of product entities in ecommerce events, counting only transaction events.

python

from snowplow_signals import Attribute, Event, Criteria, Criterion, EntityProperty, EventProperty

my_new_attribute = Attribute(
    name="products_total_purchase_value",
    description="Total purchase value for all products",
    type="double",
    events=[
        Event(
            vendor="com.snowplowanalytics.snowplow.ecommerce",
            name="snowplow_ecommerce_action",
            version="1-0-2",
        )
    ],
    aggregation="sum",
    criteria=Criteria(
        all=[
            Criterion.eq(
                EventProperty(
                    vendor="com.snowplowanalytics.snowplow.ecommerce",
                    name="snowplow_ecommerce_action",
                    major_version=1,
                    path="type"
                ),
                "transaction"
            )
        ]
    ),
    property=EntityProperty(
        vendor="com.snowplowanalytics.snowplow.ecommerce",
        name="product",
        major_version=1,
        path="price",
    ),
    default_value=0
)
